Mizan — Final Architecture

Status: design for review (pre-implementation) Date: 2026-08-09 Author: mizan-architect Supersedes and REPLACES docs/architecture.md (draft, 2026-08-07): its unique, still-accurate content is folded in here and the standalone draft file has been removed (2026-08-09). Companion: design/collaboration-design.md (contribution layer), design/implementation-plan.md (phasing + acceptance criteria) Ground truth (do not re-derive): docs/research.md.

This document confirms what the retired 2026-08-07 draft got right, folds in the collaboration layer, and records the decisions the draft left open. Where a decision depends on a spike still running, it is marked pending spike verdict and the dependent detail is deferred, not guessed.

---

1. Problem & Goals

Mizan is a Go tool over the Vertex AI Gen AI Evaluation Service (cloud.google.com/go/aiplatform/apiv1beta1) to create, manage, share, and run Gemini “LLM-as-a-Judge” metric templates across all modalities (text, image, audio, video, music). Two frontends over one shared core:

• cmd/mizan — Cobra CLI. MVP and primary deliverable.
• cmd/mizan-desktop — Wails v2 desktop app. Later phase, same internal/ core. (User decision 2026-08-09: both in scope; CLI first.)

The Metric Registry is Mizan’s own construct — there is no GCP-native resource for named judge templates (research.md §3). Collaboration starts as hybrid model C (local SQLite working copy + git-backed template packs), with a Store/codec/sync seam that admits a future Firestore/GCS central registry (model B) as a drop-in (see collaboration-design.md §3.1).

Non-Goals (architecture level)

• Firestore/GCS central registry implementation (model B) — seam only.
• Batch/async EvaluateDataset in the CLI MVP — Phase 3.
• Wails desktop in the MVP — Phase 4.
• GCS staging-bucket lifecycle management as MVP (creation/retention/GC). Note (rev 3 / spike-core): a staging bucket itself is now a P1 prerequisite for multimodal native eval — inline bytes are unsupported on the native path, so all non-text assets must be staged to gs:// (§6). MVP expects a bucket to already exist (config StagingBucket); Mizan uploads to it but does not manage its lifecycle. (The genai custom-schema path still accepts inline bytes — §6.)

---

2. Confirmed from the draft (unchanged)

The following draft decisions are validated and retained — they are correct and consistent with research.md:

• Single shared Go core in internal/, zero UI-framework deps in the core; two thin frontends. (Mirrors eldamo-app.)
• apiv1beta1 + apiv1beta1/aiplatformpb exclusively for eval; GA apiv1 is never imported (lacks multimodal, autorater config, batch — research.md §2).
• google.golang.org/genai only for the custom_schema fallback path.
• Engine dispatch by MetricKind (see §6), with content.go supplying the two small converters between aiplatformpb.Part and genai.Part (they are distinct types — retained note).
• config.LoadConfig() returns an error (not log.Fatal) so the GUI can show a setup dialog; CLI treats it as fatal. (see §7)
• Cobra for CLI; Wails v2 + Lit/Vite for desktop (user’s established stacks).
• Testing: pure unit tests for registry; eval behind a narrow mockable EvaluationClient interface; live calls behind //go:build integration.

---

3. Reconciled module layout

Adds the collaboration-layer packages (codec / pack / sync / schema / service) and the desktop split. internal/registry grows the contribution layer; everything else is as drafted.

mizan/
  go.mod                          module github.com/ghchinoy/mizan
  go.work                         (IFF spike-core verdict = go.work; see §5)
  cmd/
    mizan/                        Cobra CLI (MVP)
      main.go  root.go
      registry.go                 create|list|get|update|delete|import|export
      pack.go                     pack init|validate|add
      eval.go                     eval run|pairwise
      config.go                   config show|set
    mizan-desktop/                Wails v2 (Phase 4)
      main.go  wails.json
      frontend/                   Lit + Vite (eldamo-app stack)
  internal/
    config/       config.go       LoadConfig() -> Config, error
    registry/                     Metric Registry + contribution layer
      model.go                    MetricTemplate, InputSpec, enums (see collab §6)
      service.go                  Service — the ONLY type CLI/GUI/eval depend on
      store.go                    Store interface (CRUD + ListChangedSince)
      codec.go                    Codec interface + YAMLCodec
      sync.go                     SyncBackend interface + GitPackBackend
      pack.go                     pack manifest read/write, dir glob, scaffold
      validate.go                 validation pipeline (structural..lint)
      schema/metrictemplate.json  JSON Schema (structural source of truth)
      sqlite/sqlite.go            SQLiteStore (default Store impl; pure-Go driver — see §8)
      # firestore/  (model B, NOT built now — see Non-Goals)
    eval/
      engine.go native.go custom.go content.go
      batch.go                    (Phase 3) EvaluateDataset wrapper
    asset/        mime.go gcs.go   gcs.go staging is now a P1 prerequisite — see §6
    app/          app.go          (Phase 4) Wails bindings over registry.Service
  docs/           research.md spikes.md
                  collaboration-design.md architecture-final.md implementation-plan.md
  # NOTE (rev 3): NO packs/ tree and NO validate-packs workflow live in THIS repo.
  # Canonical template packs live in the dedicated github.com/ghchinoy/mizan-templates
  # repo, with their own CI gate. See collaboration-design.md §3.3/§3.7.

Rev 3 (2026-08-09): the canonical template packs/ tree does not live in this code repo — the user moved it to a dedicated github.com/ghchinoy/mizan-templates repo (superseding the rev-2 in-repo decision). The mizan repo carries only code + design docs; it neither builds nor imports packs. The contribution CI gate lives in mizan-templates. The Store/Codec/SyncBackend seam is unchanged, so this was a default-URL change plus relocating one CI file — see collaboration-design.md §3.3/§3.7.

Dependency direction (enforced): cmd/* → registry.Service, eval.Engine, config. eval → registry (reads MetricTemplate) but never sqlite/sync/codec. Nothing in cmd/* imports sqlite, sync, codec, or aiplatformpb directly. This is what keeps model B a drop-in and is an explicit acceptance check (collaboration-design §8).

Persistence. Default Store is a SQLite file at RegistryDBPath (§7, ~/.config/mizan/registry.db via os.UserConfigDir()) using the pure-Go modernc.org/sqlite driver recommended in §8 (to be confirmed in P1). Schema is a single metric_templates table; complex fields (Modalities, RubricGroup, ResponseSchema, Inputs) are JSON-serialized into TEXT columns. The Store interface (§3 store.go) keeps a future Firestore-backed impl a drop-in (§9).

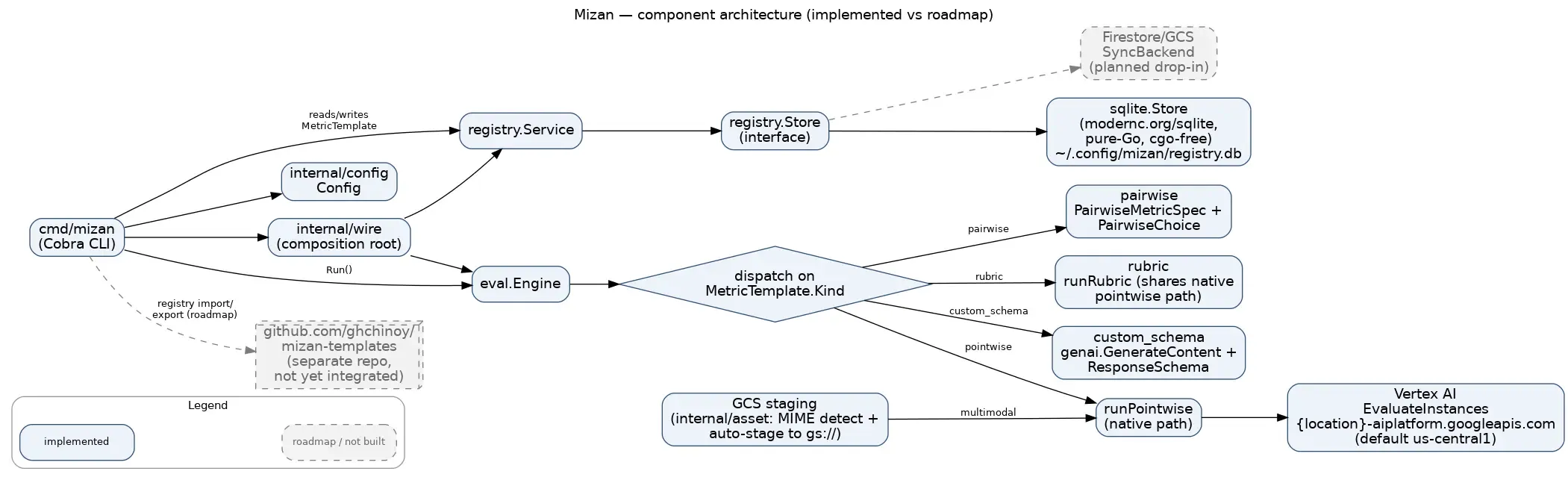

Component diagram (current build vs roadmap). All four metric kinds (pointwise, rubric, custom_schema, pairwise) and GCS multimodal staging are implemented and CLI-runnable end-to-end, so those nodes/edges are solid. Only two elements remain genuinely dashed/roadmap: the Firestore/GCS SyncBackend (still a planned drop-in, not built) and the external mizan-templates repo integration (registry import|export/pack still don’t exist in this binary):

---

4. Go version

• Container ships go1.26.1; the draft referenced 1.25.x (from the eldamo-app precedent).
• Decision: target the toolchain in the build container — go 1.26 in go.mod (toolchain go1.26.1). No language feature in this design requires 1.26 specifically, so this is low-risk and reversible; pin to what actually builds here rather than to a precedent repo’s older line.
• Wails v2.13.0 is compatible with the go1.26 line for the desktop phase; if Spike 6 surfaces a Wails/toolchain incompatibility, that is one trigger to revisit the (currently rejected) go.work split so desktop can pin its own toolchain — §5. Pending Spike 6 verdict on any Wails-specific pin.

---

5. Module layout — RESOLVED: single Go module (spike-core Spike 0)

Verdict (spike-core, 2026-08-09): a single Go module, not go.work. A buildable scaffold was pushed to branch spike/scaffold on ghchinoy/mizan confirming it. Rationale from the spike: the single module is simplest, matches the eldamo-app precedent, and the anticipated Wails transitive-dep bloat did not justify the two-module ceremony at this stage.

• Chosen — single module. One go.mod, cmd/mizan and cmd/mizan-desktop under one module. P1 builds against it directly.
• Rejected — go.work two modules (mizan-core + mizan-desktop). Would keep CLI-only go install leaner and let desktop pin its own toolchain, but adds a second go.mod and release/CI ceremony the spike judged premature. Kept as a reversible future option: if the Wails deps later bloat go install .../cmd/mizan (which the rev-3 templates CI now runs — collaboration-design §3.7), the split can be introduced at the P4 boundary without touching P1.

Rev-3 interaction: the templates CI go installs cmd/mizan (collaboration- design §3.7). Under a single module that pulls the full dependency set; this makes the pure-Go SQLite driver recommendation (§8) more pressing (cgo-free install), and is a data point to watch for a possible later split if Wails deps land in the CLI’s module graph.

---

6. Domain model & engine

The authoritative MetricTemplate struct is in collaboration-design.md §6 (it extends the retired draft’s §3 domain struct with Inputs, attribution, and provenance/sync fields). The engine and eval-time proto materialization are folded from the retired draft; the eval-layer types are given below and the authoritative dispatch is the bullets that follow. (CLI surface and desktop bindings folded from the retired draft are in §12 and §13.)

• pointwise/pairwise, text-only → *MetricSpec + JsonInstance.
• pointwise/pairwise, any non-text asset → *MetricSpec + ContentMapInstance with FileData (gs://) only — see the inline-bytes finding below.
• rubric → shares the native PointwiseMetricSpec/EvaluateInstances path with pointwise (runRubric in internal/eval/native.go), because the synchronous EvaluateInstances API has no LLMBasedMetricSpec input for inline rubric groups (that message exists only on the batch EvaluateDataset path, and there it references rubric groups by key, not inline) — instead the rubric criteria are rendered as additional judge-prompt text via renderRubricGroups and appended to the metric prompt.
• custom_schema → genai.GenerateContent with ResponseSchema + backoff retry.

AutoraterConfig (SamplingCount, FlipEnabled, AutoraterModel) is populated from the template’s autorater.* fields.

The eval-layer types (folded from the retired draft §3):

internal/eval/engine.go

type Instance struct {
    // Named placeholders -> content. For text, a plain string is enough;
    // for other modalities, a reference to an asset (path or gs:// URI).
    Fields map[string]AssetRef
}
type AssetRef struct {
    Modality Modality
    Text     string // for ModalityText
    FilePath string // local file; staged to gs:// for native eval (inline only on the genai custom-schema path)
    GCSUri   string // pre-staged asset
    MimeType string // detected or explicit
}
type Result struct {
    Score          *float32
    PairwiseChoice string // "" unless pairwise
    Explanation    string
    RawOutput      []string          // if ReturnRawOutput
    CustomOutput   map[string]any    // if KindCustomSchema
}

type Engine interface {
    Run(ctx context.Context, tmpl registry.MetricTemplate, inst Instance) (Result, error)
}

Spike 1–3 verdicts — RESOLVED (spike-core, 2026-08-09):

• Placeholder syntax: the API accepts both {{x}} and {x}; Mizan standardizes on double-brace {{x}} (validator enforces — collaboration-design §3.2/§3.5).
• Eval-service region: the native EvaluateInstances path targets a specific regional endpoint — us-central1 (verified default), plus us-east4, us-west1, europe-west1, europe-west4, and global all return live scores; asia-northeast1 is rejected (FailedPrecondition) and the us multi-region endpoint 404s — do NOT use it. Default Location = us-central1 (§7). Surface the service’s Unsupported region error verbatim. Prefer a concrete region for the native path; reserve global for the genai path below.
• The genai custom-schema fallback path uses location=global and is distinct from the native regional path — keep the two clients/locations separate (this mirrors the inline-bytes asymmetry).
• MAJOR — inline bytes are NOT supported by native EvaluateInstances / ContentMapInstance. All non-text native eval requires gs:// FileData staging — GCS staging is mandatory for every multimodal native eval, not just large payloads. There is no inline-Blob fast path on the native route; content.go therefore emits FileData only for non-text assets and must stage local files to GCS first (or error clearly if no bucket is configured).
• Exception — the genai custom-schema fallback path DID accept inline bytes. The two paths differ: native EvaluateInstances = gs:// only; genai.GenerateContent (custom_schema) = inline bytes OK. content.go must keep the two converters distinct and honor this asymmetry.
• Autorater model must be a FULL RESOURCE NAME — projects/{ProjectID}/locations/{Location}/publishers/google/models/{model}; a bare id (gemini-2.5-pro) is rejected InvalidArgument: Invalid autorater model resource name. Packs store only a publisher-relative id (portability — they must not embed a project); native.go expands it to the full resource name at materialization using config ProjectID/Location. See collaboration-design §3.2/§6.
• Mismatched MIME silently drops the asset — asset/mime.go must detect and set the correct MIME or the eval silently loses the input.
• PairwiseChoice confirmed live: BASELINE=1, CANDIDATE=2, TIE=3.

These affect content.go / native.go / asset/ and the config default Location, and make GCS staging a P1 prerequisite (implementation-plan § P1). They do not change the module layout or the domain model.

Sequence diagram — text-pointwise eval run (fully implemented). This is one example of a fully implemented path; rubric, custom_schema, pairwise, and multimodal are also implemented end-to-end — see the component diagram above:

---

7. Config

Per the mcp-common shape (folded from the retired draft), with the collaboration additions:

type Config struct {
    ProjectID            string // required (env PROJECT_ID / MIZAN_PROJECT_ID); default ghchinoy-genai-sa in examples
    Location             string // native eval-service region; default "us-central1" (spike-core). Valid: us-central1|us-east4|us-west1|europe-west1|europe-west4|global. NOTE: the "us" MULTI-REGION 404s (do not use); asia-northeast1 rejected. genai custom-schema path uses location=global separately.
    StagingBucket        string // gs:// staging bucket — REQUIRED for multimodal native eval (inline bytes unsupported, §6); gs:// stripped
    APIEndpoint          string // optional override
    RegistryDBPath       string // default ~/.config/mizan/registry.db (os.UserConfigDir)
    PackCacheDir         string // default ~/.cache/mizan/packs  (for `import <git-url>`)
    DefaultTemplatesRepo string // default "github.com/ghchinoy/mizan-templates" (rev 3) — bare `registry import` source
}

StagingBucket is no longer optional for multimodal. Per spike-core, native EvaluateInstances rejects inline bytes, so any non-text native eval needs a gs:// staging bucket. See §6 and the P1-prerequisite note in implementation-plan.md. Text-only eval and the genai custom-schema path do not require it.

---

8. Dependencies (reconciled go.mod)

require (
    cloud.google.com/go/aiplatform v1.121.0   // apiv1beta1 only
    google.golang.org/genai        v1.65.0    // custom_schema fallback
    github.com/spf13/cobra         v1.10.2
    github.com/mattn/go-sqlite3    <pin>       // matches eldamo-app
    github.com/joho/godotenv       <pin>
    gopkg.in/yaml.v3               <pin>       // YAMLCodec (collaboration layer)
    github.com/Masterminds/semver/v3 <pin>     // template version comparison
    github.com/santhosh-tekuri/jsonschema/v6 <pin> // structural pack validation
    // desktop module only (see §5):
    github.com/wailsapp/wails/v2   v2.13.0
)

SQLite driver — recommendation firmed to pure-Go modernc.org/sqlite (rev 3). The rev-3 templates CI go installs cmd/mizan to obtain the validator (collaboration-design §3.7); with the cgo mattn/go-sqlite3 driver that CI would need a C toolchain. Adopting the pure-Go modernc.org/sqlite driver (drop-in database/sql) keeps go install .../cmd/mizan@<ver> cgo-free in a stock setup-go runner — for the templates CI and for end users installing the CLI. Spike 5 validated the storage layer against mattn/go-sqlite3, but the interface and JSON-column approach are driver-agnostic, so swapping the driver is low-risk. Confirmed in P1 (WI-P1-1): go.mod pins modernc.org/sqlite v1.56.0; the mattn/go-sqlite3 line in the dependency block above is superseded and kept only as the historical rationale for why the pure-Go driver was chosen.

---

9. Alternatives Considered (architecture level)

• Two independent apps (no shared core) — rejected; duplicates domain/eval logic, guarantees drift between CLI and GUI. Shared internal/ is the whole point of the layout.
• GA apiv1 — rejected (research.md §2: no multimodal/autorater/batch).
• Silent genai fallback for all custom output — rejected; custom_schema is an explicit, declared metric kind so behavior is predictable and testable (research.md §3).
• Firestore as the primary/only Store from day one — rejected (user deferral; adds infra + auth + offline handling before any value ships). The seam preserves the option.

---

10. Open Questions (architecture level)

1. Module layout — RESOLVED (spike-core Spike 0): single Go module. §5.
2. SQLite driver — RESOLVED (confirmed in P1, WI-P1-1): pure-Go modernc.org/sqlite (cgo-free go install for the rev-3 templates CI and end users; see go.mod). §8.
3. Eval-service region / placeholder syntax / inline bytes — RESOLVED (spike-core): default us-central1; double-brace {{x}}; inline bytes unsupported on native eval → GCS staging mandatory for multimodal. §6/§7.
4. apiv1beta1 preview stability posture for a production tool (research.md §7 open item) — confirm breaking-change cadence before GA claims.
5. Pack repo location — RESOLVED (user, 2026-08-09, rev 3): dedicated github.com/ghchinoy/mizan-templates repo (supersedes rev-2 in-repo). See collaboration-design.md §3.3/§3.7.
6. GCS staging provisioning (NEW, spike-core): the eval SA sa-scion-warmup lacks storage.buckets.create/list; a staging bucket must be provisioned (or the SA granted storage.admin) before P1 multimodal eval works. Hard dependency — see implementation-plan.md P1 prerequisites. Raise to user/owner.
7. Validator provisioning for the templates CI (rev-3): no tagged mizan release exists to pin MIZAN_VERSION; needs a release/tag workflow or a main pseudo-version, plus a MIZAN_RO_TOKEN secret. collaboration-design §3.7/§7.

---

11. Acceptance Criteria (architecture level)

• go build ./... succeeds on go1.26.1 as a single module (§5); go vet clean. No packs/ tree or pack CI exists in this repo (rev 3) — they live in mizan-templates.
• Dependency-direction check passes: cmd/* imports only registry.Service, eval.Engine, config — never sqlite/sync/codec/aiplatformpb.
• eval unit tests pass against a mocked EvaluationClient; integration tests compile behind //go:build integration.
• go install github.com/ghchinoy/mizan/cmd/mizan@<ver> succeeds cgo-free in a stock setup-go runner (pure-Go SQLite driver, §8) — the rev-3 templates-CI requirement.
• Remaining pending spike verdicts (§10 Q4) are resolved and recorded in docs/research.md §7 before the packages they gate are implemented; the spike-core verdicts (§5/§6/§7/§8) are already folded in here.

---

12. CLI surface (Cobra)

Folded from the retired draft §6 and reconciled to the rev-3 command set (§3). This block is kept as historical/design-level and is not updated flag-by-flag as the CLI evolved (for example, the shipped flags are --prompt and --flip-enabled, not --prompt-template/--flip as sketched below). For the real, current, live-verified CLI surface, see docs/testing-guide.md and docs/user-guide.md.

# Registry — local working-copy CRUD
mizan registry create --name <n> --kind pointwise --modality text \
    --prompt-template ./template.txt [--modality image ...]
mizan registry list
mizan registry get <name>
mizan registry update <name> [--prompt-template ./template.txt] [...]
mizan registry delete <name>

# Registry — share (contribution layer; see collaboration-design.md §3.6)
mizan registry import <src> [--strategy newer|skip|overwrite|fork] \
    [--namespace <ns>] [--dry-run]   # src = git URL | pack dir; bare src = default templates repo
mizan registry export <name> --out <dir>          # write template(s) as an on-disk pack

# Packs — author/scaffold and validate locally
mizan pack init <dir>                             # scaffold a new pack (manifest + skeleton)
mizan pack validate <dir>                         # structural + lint validation
mizan pack add <dir> <name>                       # add a template to a pack

# Eval
mizan eval run --metric <name> \
    --field response=./output.mp4 \
    --field prompt="a dog running in a park" \
    [--sampling-count 4] [--flip] [--output json|table]
mizan eval pairwise --metric <name> \
    --candidate ./a.mp3 --baseline ./b.mp3 --field context="..."

# Config
mizan config show
mizan config set project-id ...

Follows the drivectl precedent: cobra.Command.GroupID groups the registry, pack, eval, and config subcommand families. Per the dependency direction in §3, cmd/mizan imports only registry.Service, eval.Engine, and config — never sqlite/sync/codec/aiplatformpb.

---

13. Wails desktop bindings (Phase 4)

Folded from the retired draft §7. Phase 4 — not the MVP. internal/app/app.go binds a thin layer that wraps registry.Service and eval.Engine (the rev-3 seam, §3); it holds no domain logic of its own:

func (a *App) ListMetricTemplates() ([]registry.MetricTemplate, error)
func (a *App) SaveMetricTemplate(t registry.MetricTemplate) error
func (a *App) DeleteMetricTemplate(id string) error
func (a *App) RunEvaluation(metricID string, fields map[string]string) (eval.Result, error)
func (a *App) PickFile() (string, error)          // wraps wails runtime.OpenFileDialog
func (a *App) GetConfig() (config.Config, error)
func (a *App) SaveConfig(c config.Config) error

Frontend stack: Lit + Vite, matching the eldamo-app precedent (avoids introducing React/Vue tooling churn); wails.json adapted from eldamo-app with name/paths adjusted. The Go and Wails toolchain versions are governed by §4 and §5 and are deliberately not restated here to avoid drift.
