Security Camera & Transcoding Vertical Architecture

The security camera vertical enables discovery, browser playback, and multimodal AI visual inspection across IP security cameras (Alarm.com, Hikvision, Dahua, Axis, and generic ONVIF devices).

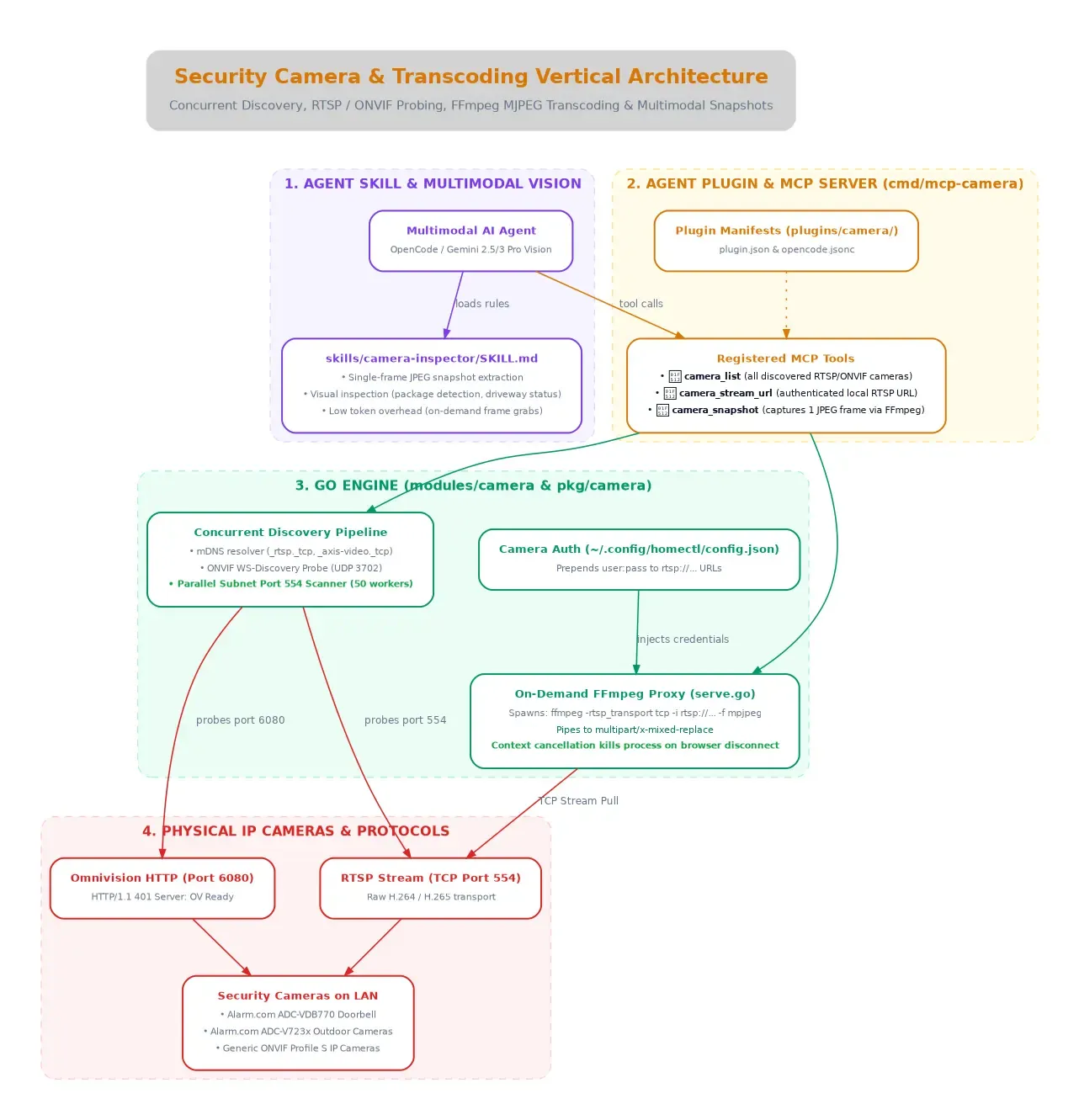

Architectural Diagram

Security Camera Vertical Architecture

Key Components & Protocol Flow

1. Agent Skill & Multimodal Vision (`skills/camera-inspector`)

Single-Frame Extraction: Instead of streaming heavy continuous video to an LLM, the agent extracts an on-demand single JPEG frame via camera_snapshot.
Multimodal Reasoning: Feeds the captured image directly to multimodal models (e.g., Gemini 2.5/3 Pro Image) for visual reasoning (“Is there a package on the porch?”, “Is the garage door open?”).
Token Efficiency: Consumes standard image input tokens only when triggered, avoiding continuous video context consumption.

2. Standalone MCP Server (`cmd/mcp-camera`)

camera_list (🔒 Read-Only): Lists all discovered RTSP and ONVIF cameras with IP addresses and model identifiers.
camera_stream_url (🔒 Read-Only): Returns the authenticated local RTSP URL for media players like VLC.
camera_snapshot (🔒 Read-Only): Captures and returns a single JPEG snapshot.

3. Go Engine & On-Demand Transcoding (`modules/camera` / `pkg/camera`)

Concurrent Discovery Pipeline:
- Dispatches mDNS browsing (_rtsp._tcp, _axis-video._tcp) and ONVIF WS-Discovery (UDP 3702) concurrently.
- Runs a parallel subnet port 554 scanner using a 50-worker concurrency semaphore. Decoupled via sync.WaitGroup so port probing completes in under 300ms without being blocked by mDNS timeouts.
On-Demand FFmpeg MJPEG Proxy (cmd/serve.go):
- Spawns an ffmpeg child process:
  Terminal window
```
ffmpeg -rtsp_transport tcp -i rtsp://user:pass@192.168.1.200:554 \
  -f mpjpeg -q:v 3 -vcodec mjpeg pipe:1
```
- Pipes the output directly to the browser as multipart/x-mixed-replace.
- Context Lifecycle: Wraps the process in exec.CommandContext(r.Context(), ...). When the browser tab closes or stream is stopped, the context automatically signals SIGKILL to ffmpeg, eliminating orphaned background transcoding processes.
Credential Injection: Loads global camera credentials (camera_auth in config.json) and safely injects them into outbound RTSP URLs.

4. Physical Cameras & Protocols

RTSP (TCP Port 554): Standard streaming protocol delivering H.264 video.
Omnivision (TCP Port 6080): Proprietary control API identifying Alarm.com cameras (Server: OV Ready).
ONVIF WS-Discovery (UDP 3702): Multicast discovery protocol returning camera hardware profiles and RTSP scope URLs.
