Qolsys Security Vertical Architecture

The Qolsys vertical connects homectl to Qolsys IQ Panel 2+ and IQ Panel 4 residential alarm panels, enabling real-time sensor telemetry and safety-gated arming controls.

---

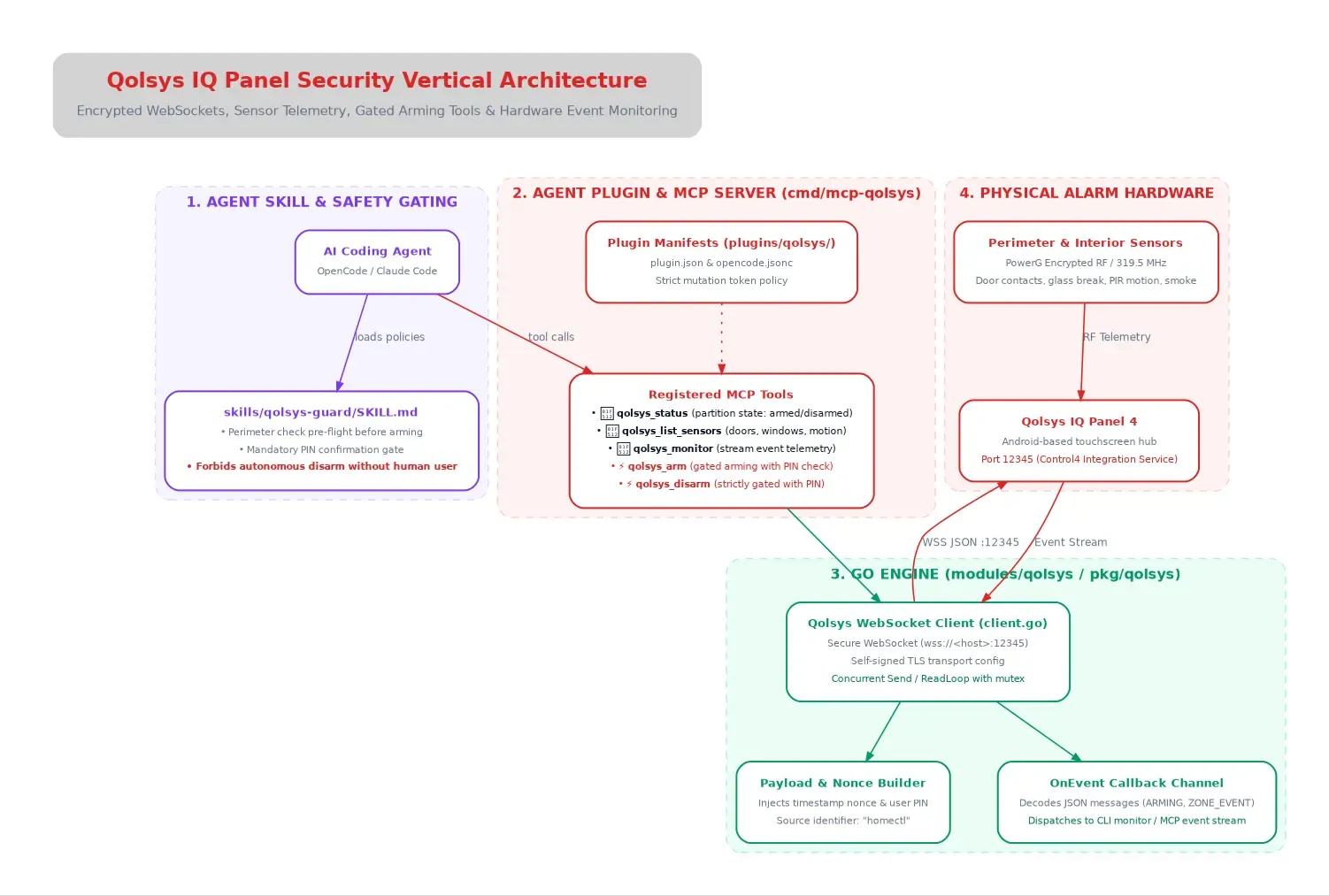

Architectural Diagram

---

Key Components & Safety Protocols

1. Agent Skill & Strict Gating (skills/qolsys-guard)

Because alarm systems are life-safety critical actuators, skills/qolsys-guard enforces strict defensive policies:

• Perimeter Pre-Flight Check: Before arming, the agent must query qolsys_list_sensors to verify that all exterior doors and windows are closed.
• Mandatory User PIN Verification: Arming commands require an explicit 6-digit access PIN.
• Autonomous Disarm Prohibited: Agents are strictly forbidden from disarming the security system without explicit real-time human approval.

2. Standalone MCP Server (cmd/mcp-qolsys)

• qolsys_status (🔒 Read-Only): Returns partition status (DISARMED, ARMED_STAY, ARMED_AWAY).
• qolsys_list_sensors (🔒 Read-Only): Lists door contacts, window sensors, motion detectors, and smoke alarms with open/closed state.
• qolsys_monitor (🔒 Read-Only): Streams live event frames to the agent.
• qolsys_arm (⚡ Mutating): Safety-gated tool for arming stay or away with PIN check.
• qolsys_disarm (⚡ Mutating): Strictly gated disarm tool.

3. Go Engine (modules/qolsys / pkg/qolsys)

• Secure WebSocket Client (client.go): Connects to wss://<host>:12345 with self-signed TLS support.
• Nonce & Payload Builder: Constructs JSON command frames containing an anti-replay Unix timestamp nonce, the user’s PIN token, and the source: "homectl" signature.
• Asynchronous Read Loop: Operates a background goroutine continuously reading incoming WebSocket frames and dispatching them to the OnEvent callback handler.

4. Physical Alarm Hardware

• IQ Panel 4: Android-powered touchscreen controller hosting the Control4 / 3rd Party Integration service on TCP port 12345.
• PowerG & 319.5 MHz RF Sensors: Long-range, frequency-hopping encrypted sensors (door contacts, motion detectors, glass-break sensors) reporting real-time physical telemetry.
