Lutron Lighting Vertical Architecture

The Lutron vertical provides local control of Lutron Caseta and RA2 Select systems. It bypasses the Lutron cloud entirely, executing encrypted commands directly on the local Smart Bridge.

---

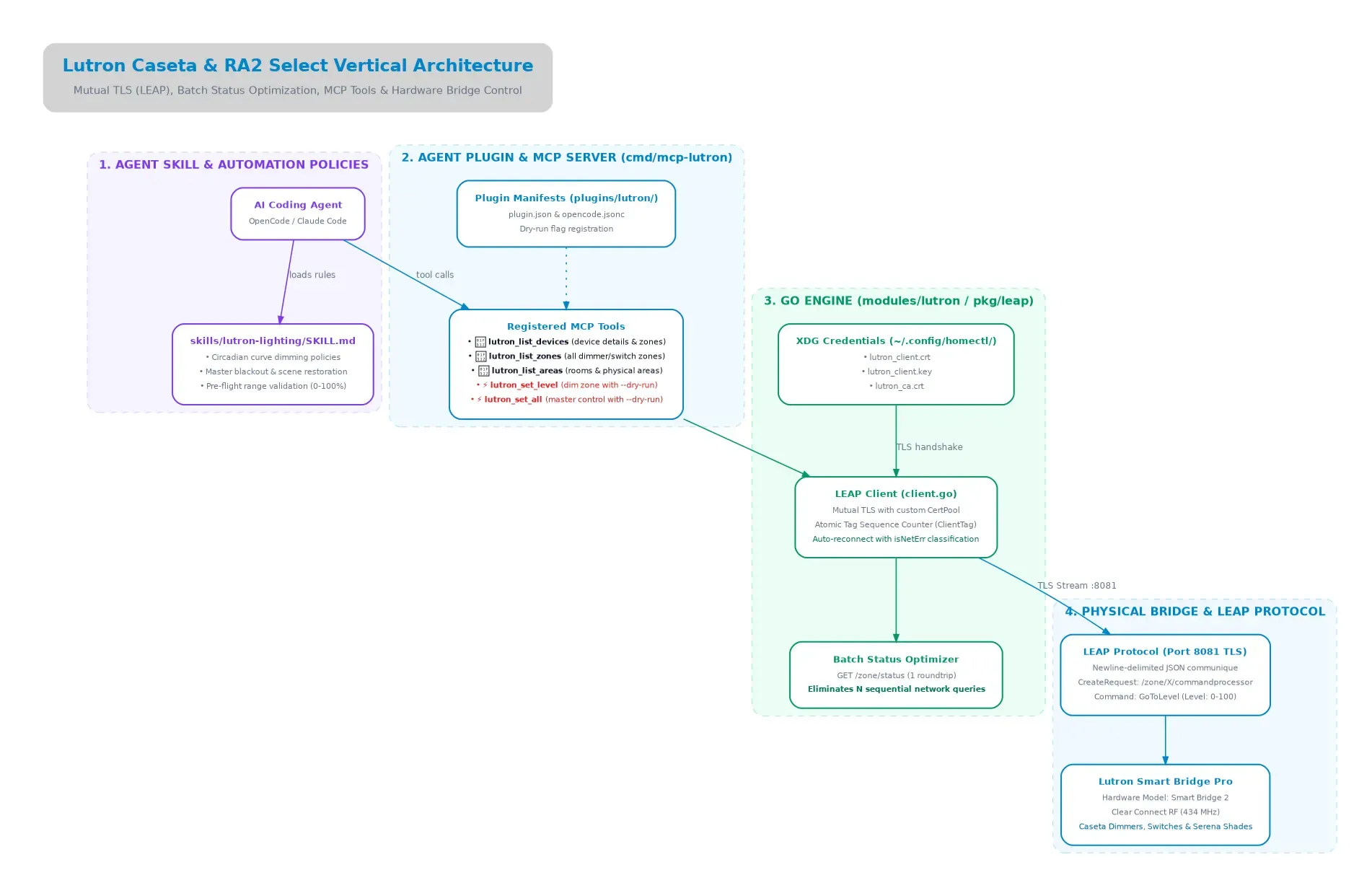

Architectural Diagram

---

Key Components & Protocol Flow

1. Agent Skill & Rules (skills/lutron-lighting)

• Circadian Lighting Automation: Instructs AI agents on color temperature and dimming curves across time of day.
• Pre-Flight Range Validation: Guards against out-of-range dimming commands (level < 0 or level > 100).
• Blackout / Scene Control: Guides master shutoff workflows (lutron_set_all(0) with --dry-run safety).

2. Standalone MCP Server (cmd/mcp-lutron)

Exposes tools for lighting state and control:

• lutron_list_devices (🔒 Read-Only): Lists all smart bridge devices, local zones, and model numbers.
• lutron_list_zones (🔒 Read-Only): Enumerates dimming and switching circuits with control types.
• lutron_list_areas (🔒 Read-Only): Returns room and area groupings.
• lutron_set_level (⚡ Mutating): Adjusts brightness for a specific zone with --dry-run simulation support.
• lutron_set_all (⚡ Mutating): Broadcasts master dimming level to all zones with safety confirmation.

3. Go Engine (modules/lutron / pkg/leap)

• Mutual TLS (mTLS): The Lutron bridge requires client certificates. pkg/leap configures a custom x509.CertPool using certificates stored in ~/.config/homectl/ (lutron_client.crt, lutron_client.key, lutron_ca.crt).
• Atomic ClientTag Sequencing: Each LEAP JSON request is assigned an incrementing atomic tag (atomic.AddUint64(&tagCounter, 1)). The client matches incoming bridge responses to the initiating tag, ensuring request/response correlation over persistent TLS connections.
• Batch Status Optimization: Instead of querying individual /zone/<id>/status endpoints sequentially (which scales as $O(N)$ network requests), homectl queries the collective /zone/status endpoint in a single roundtrip.
• Resilient Auto-Reconnection: Network dropouts are detected via isNetErr(err) (evaluating io.EOF, net.OpError, and timeout conditions), triggering automatic reconnection before retrying in-flight requests.

4. Physical Bridge & LEAP Protocol

• Port 8081 TLS: Communcation takes place over newline-delimited JSON payloads:

  {
    "CommuniqueType": "CreateRequest",
    "Header": { "Url": "/zone/1/commandprocessor", "ClientTag": "42" },
    "Body": {
      "Command": {
        "CommandType": "GoToLevel",
        "Parameter": [{ "Type": "Level", "Value": 75 }]
      }
    }
  }

• Clear Connect RF (434 MHz): The Smart Bridge broadcasts proprietary Clear Connect signals to wall dimmers, fan controls, and motorized Serena shades.
